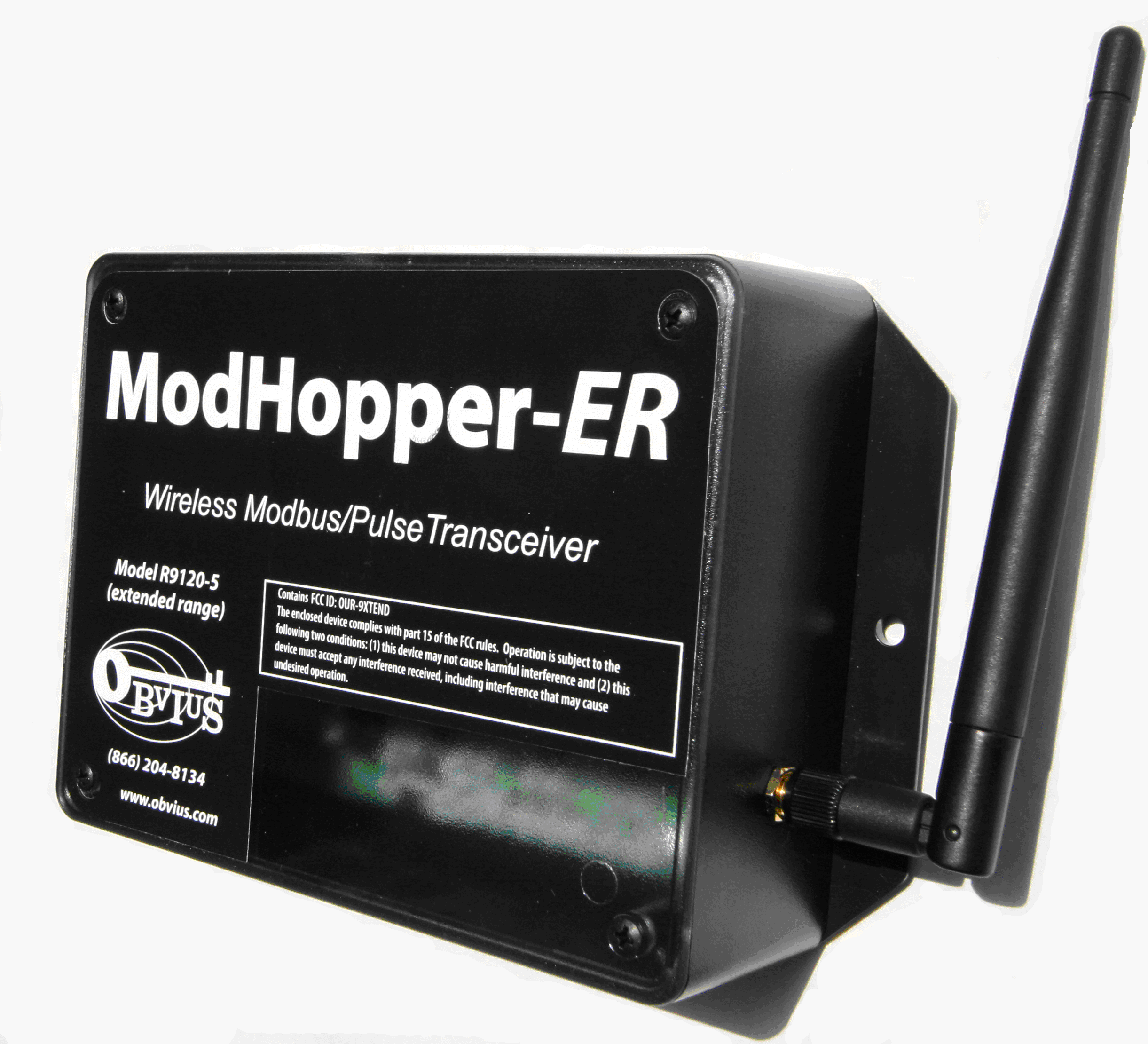

The Extended Range ModHopper encompasses all the features and benefits of the existing Modhopper product line with the added bonus of an extended range and 256 bit AES encryption. Ideal for campus and base facilities the device allows for securely encrypted wireless transmissions up to 3000' all while maintaining a self optimizing wireless interface between multiple Extended Range Modhoppers and networks. Perfect for submetering commercial & industrial facilities, the Extended Range Modhopper makes the addition of Modbus devices both cost and time effective.
Modhopper is the perfect solution for connecting new or existing Modbus and pulse devices (meters, sensors, etc.) without the need for costly wiring runs, core drilling or conduit. Simply connect the Modbus devices to the serial port on the Modhopper and the transceivers will automatically detect the optimum routing to insure reliable and timely data communications. Data from each Modhopper wireless transceiver is passed from one transceiver to another to reach its ultimate destination. This self-managed mesh network means that the system will function with high reliability where other wireless systems fail due to short- or long-term interference with radio signals.
Features:
- Modhopper is a breakthrough mesh technology design that makes wireless connectivity simple and cost effective:
- Connect up to 128 RS 485 Modbus devices to any Modbus network
- Use “Plug and play” connectivity for supported devices to the Obvius AcquiSuite data acquisition server
- Unique “mesh” technology means optimized routing of communications with NO PC OR SOFTWARE CONFIGURATION!
- 256 bit AES encryption
- Max range of up to 3000'
Accepts standard pulse inputs or Modbus RS485
Note- The R9120-3 RevA Modhoppers are no longer shipping and have been replaced by the R9120-3 RevC (Shipping since Q4 2008) Modhoppers which add additional features and benefits such as broader power ranges, radio types, etc... As always Obvius will continue to provide support for the RevA Modhoppers. To get documentation on the RevA Modhoppers please click the link below:
|

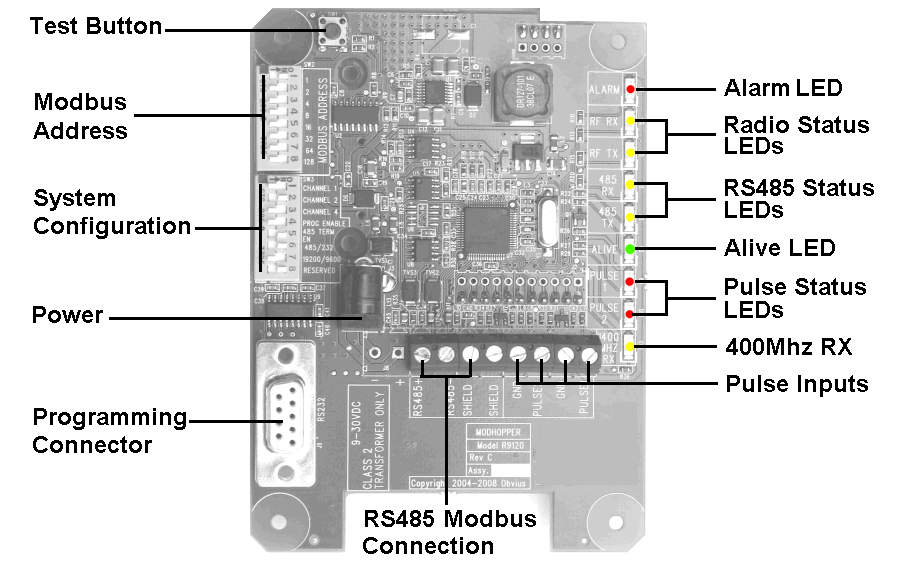

(click image below to view
Internal Annotated Diagram)
|
Additional Documentation
Firmware Update
Best Practices
